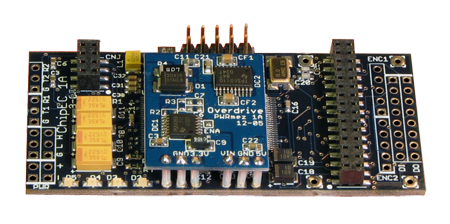

"Chip-EC" Motor Controller

Chip EC

MADC

This Embedded Computer is an essential part of an Overdrive control system. Its high-powered DSC chip moves motors and provides onboard intelligence in remote equipment.

The device interfaces with serial and CANopen equipment, it additionally has 12 PWM outputs, and can read 8 analog and 8 digital channels of telemetry. Motion datasets can be downloaded into the Chip-EC such that the device can be used as a standalone playback unit with dozens of channels.


Specifications

Part Number: CEC-1.3.0
Power input: 4.3-16VDC
Dimensions: 1.31" x 3.06" (33.27mm x 77.72mm)
Cables: power cable, RS232, inter-EC (CAN)

Documentation

Chip-EC Howto (pdf)
